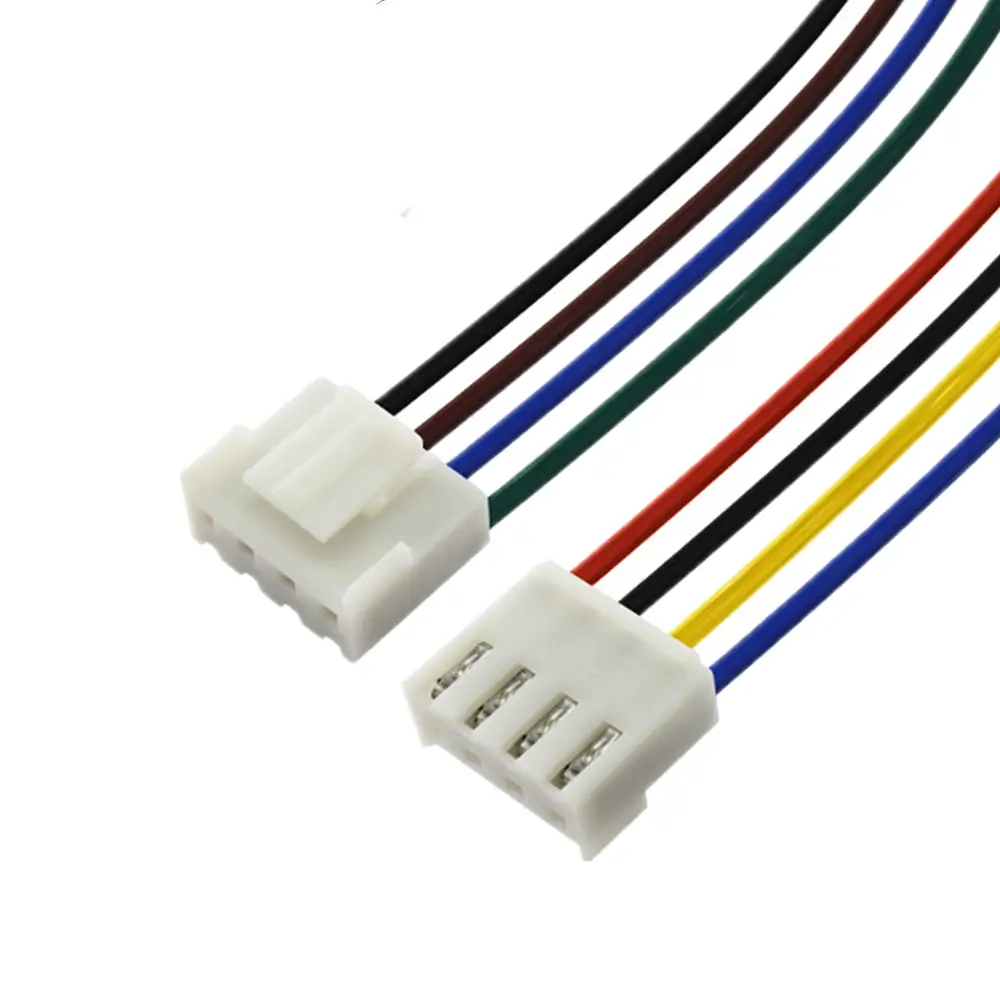

Single-ended VH lead
One crimp housing with prepared wire ends at the other side. Define strip, tin, ferrule or other end preparation only when your receiving connection requires it.
Available for quotation
3.96 mm pitch · Finished cable assemblies
Custom JST VH Cable Assemblies
Source a finished cable assembly for equipment that already uses a JST VH mating interface, or start from a housing reference, board-header reference, photo or brief requirement. Zeakka coordinates specification review, supplier quotations and samples; we are a trading and sourcing partner, not the manufacturer.
Email and a non-empty requirement are the only required fields. Name, company and attachments are optional.
Structure first, then components
Define the connection layout your equipment needs
We can quote single-ended, double-ended, mixed-interface and branched VH assemblies. The A end, B end and each branch are still identified separately so the proposed components and wiring match the project.

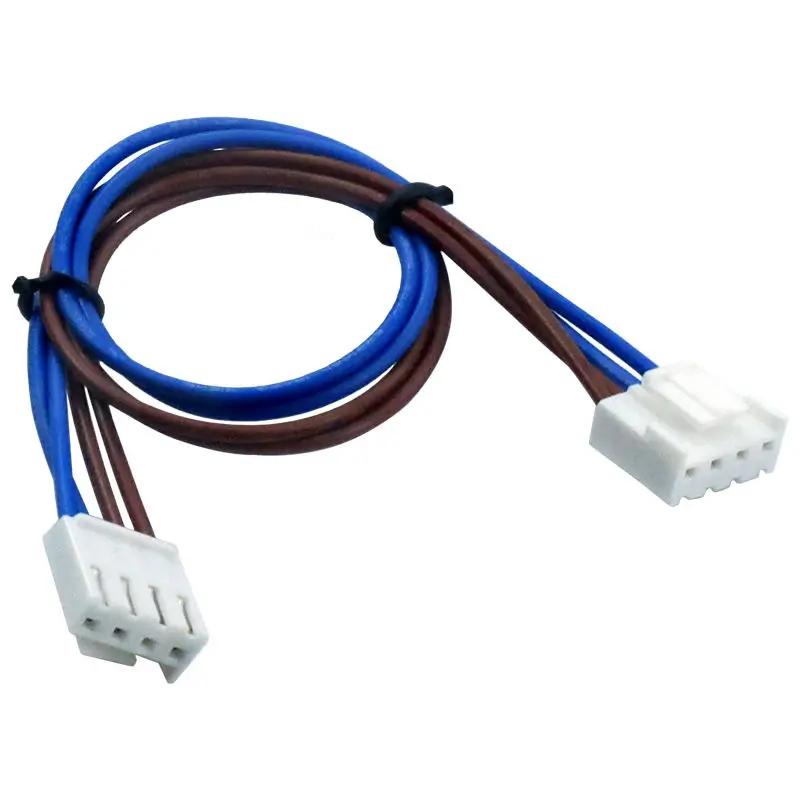

Double-ended assembly
A connector at both ends with an agreed pin-to-pin map. Two receptacle housings do not become an inline male/female extension pair.
Available for quotation

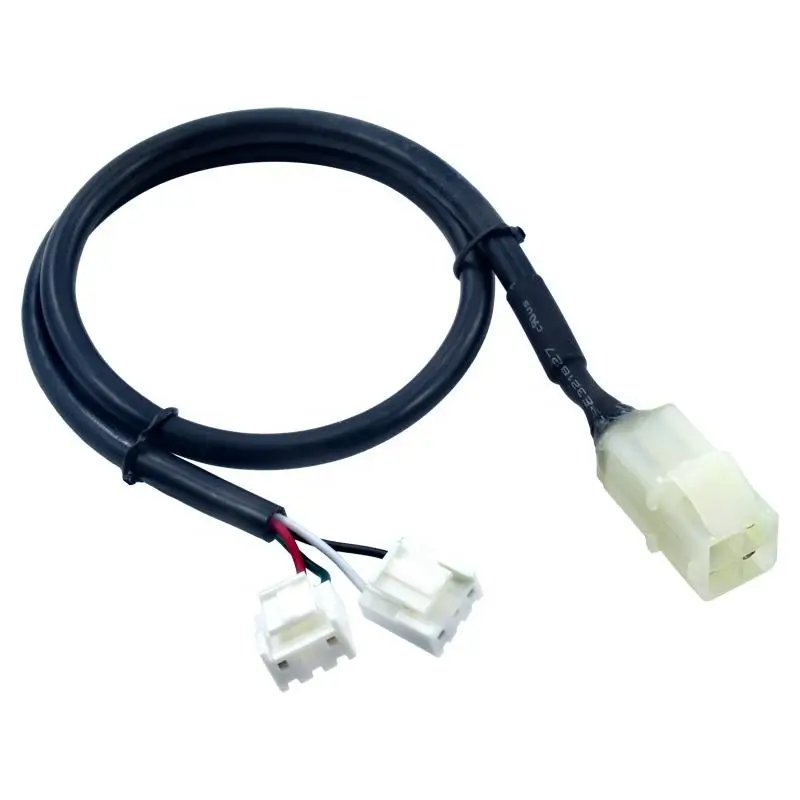

Mixed-interface cable
A VH interface at one end and another specified connector or termination at the other. Both exact mating interfaces and terminal systems must be reviewed.
Available for quotation

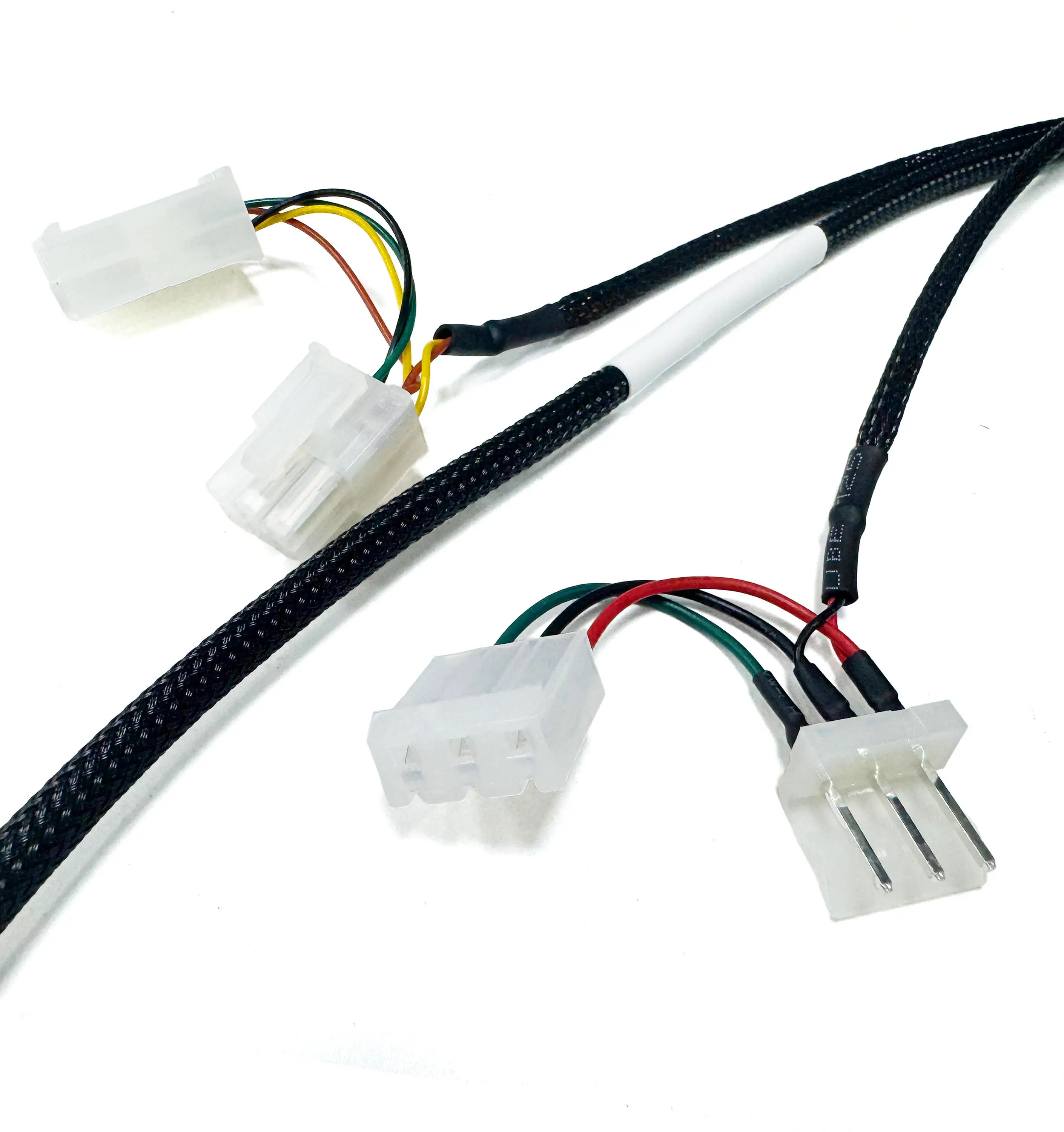

Branched harness
Multiple legs defined by a branch diagram, leg labels, dimensions and circuit map. Electrical loading and branch construction must be assessed for the project.
Available for quotation
What to send
Six inputs turn a reference into a buildable assembly
A complete drawing is helpful but not required for first contact. A clear photo, known part number or short description can start the review.
| Decision | What to provide | Why it matters |
|---|---|---|
| Mating interface | Housing and board-header references, or clear photos of both sides | Prevents a visually similar series or header variant from being selected |
| A end / B end | Name each end and its viewing direction | Keeps pin numbering and orientation unambiguous |
| Pinout | Circuit-to-circuit table, unused positions and any crossovers | Wire color alone is not a pinout |
| Length | Measurement points, nominal length and tolerance | Housing-to-housing, wire-only and cut length are different dimensions |
| Wire | Conductor size, insulation outside diameter, type, colors and any jacket | The selected terminal must match both conductor and insulation |
| Finishing | Labels, ties, braid, sleeve, heat shrink, routing or overmold request | Wire management, protection and molding are separate choices |
Original-series reference
Use the JST VH drawing to identify the interface—not to rate the finished cable
The current JST VH catalog describes a 3.96 mm-pitch wire-to-board family. Its cable-side housings mate with board-mounted headers; a board header must not be presented as a cable-end plug. Exact housing, contact and header variants still need to be matched.
Open the current JST VH catalog (PDF)- Cable-side housings
- VHR-*N is listed from 2 to 11 circuits; M-type and retainer-compatible variants have their own availability and restrictions.
- Crimp contacts
- SVH-21T-P1.1 is listed for AWG 22–18; SVH-41T-P1.1 for AWG 20–16.
- Insulation O.D.
- The contact table lists 1.7–3.0 mm; retainer-mountable housings narrow the stated range to 1.7–2.2 mm.
- Electrical reference
- JST lists 10 A with AWG 16 and a standard header, and 7 A with AWG 18 and a shrouded header. These conditions do not establish the rating of a Zeakka-sourced finished assembly or an unbranded alternative.
Original JST components and compatible candidates stay distinct
Original JST option
Original JST housing, contact and header references can be sourced as part of a finished assembly. Availability, traceability documents and the exact component set are confirmed in the quotation.
Unbranded compatible candidate
We can also quote an unbranded compatible candidate. It is reviewed against the mating interface, drawing, material, contact geometry, wire fit and sample; similar pitch or appearance alone does not prove interchangeability or performance.
Zeakka is not affiliated with JST. Original-series catalog ratings apply only under the manufacturer's stated component and test conditions. The existing Zeakka 3961 PDF is an alternative-connector drawing, not a JST drawing and not a finished-cable specification.
See the separate VH alternative connector detailQuotation, sample and checks are agreed by project
The review follows the approved configuration rather than a generic ‘VH cable’ specification.
- 1
Clarify
Confirm mating parts, circuit count, A/B orientation, pinout, wire, length and finishing.
- 2
Compare
Identify the proposed component source and compare quotation scope from suitable production partners.
- 3
Sample
Review the sample against the agreed drawing or requirement and record any revision before production.
- 4
Inspect
Every finished harness is tested for continuity and short circuits. Dimensional, visual and any additional application-specific checks are agreed for the project.
MOQ, sample cost, lead time, certifications, inspection records and any checks beyond continuity and short-circuit testing depend on the chosen configuration and supplier.
JST VH cable assembly questions
Can I request a quote without a drawing?
Yes. Send a photo, housing or header reference, existing cable sample details, or a short requirement. We can identify the missing decisions before a quotation is finalized.
Is JST VH a wire-to-wire connector family?
The referenced JST VH catalog describes a wire-to-board family. Its headers are PCB-mounted. If you need an inline extension, send photos or references for both mating cable ends so a different or compatible solution can be assessed without treating the board header as a cable plug.
Can I specify only the number of pins and cable length?
Those details are useful but not sufficient by themselves. Please also identify the mating interface, pinout or required circuit mapping, wire needs and how length should be measured.
Can the cable use original JST parts?
You can request original JST components within the finished assembly, or ask for an unbranded compatible candidate. The quotation should identify the proposed route and exact references; a photo alone does not prove origin.
What current can the finished cable carry?
There is no single page-wide rating. The JST catalog values are conditional component references. Finished-assembly suitability depends on the selected contacts, wire, header, circuit loading, temperature and application, and must be confirmed for the project.
What are the MOQ and lead time?
They depend on component source, wire, quantity, assembly work, testing and any special processing. Share your sample and production quantities so the quotation can state the applicable terms.
Start with the VH information you already have
Send a photo, part number, drawing or short requirement. Add approximate quantity and length if known; optional files can follow after the first conversation.
