Through-Hole vs SMT Connector Headers: Choosing PCB Attachment and Assembly

A cable housing can fit the intended connector family while the proposed header still fails the PCB design. Through-hole and surface-mount headers attach to the board differently, so choosing between them affects the footprint, assembly process and mechanical support around the connection.

Start with the exact board-side part and the PCB assembler's process. Then confirm the cable-side mating combination. A familiar series name or matching pitch does not establish a drop-in replacement, a matching pin assignment or an approved soldering method.

Separate board attachment from the mating interface

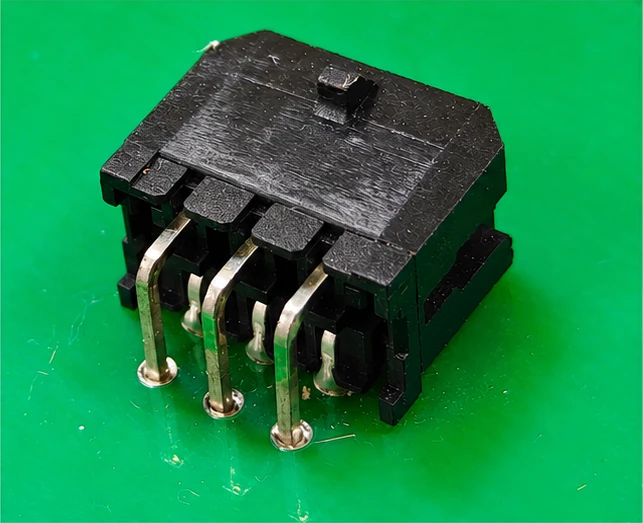

In a soldered through-hole header, the termination tails enter PCB holes and are soldered to the board. An SMT header has termination tails soldered to surface pads. Additional locating pegs, retention clips or solder tabs may be present in either design; classify their functions from the drawing rather than assuming every feature carries a circuit.

This comparison concerns soldered headers. A press-fit termination is a separate attachment system with its own hole and installation requirements. Molex's Micro-Fit overview lists several PCB termination options within the wider family, illustrating why a family name alone is insufficient to specify the assembly route. Molex Micro-Fit overview

The mating direction is another independent choice. Vertical and right-angle describe the connector's orientation; through-hole and SMT describe its PCB attachment. Neither pair of terms should substitute for the other on a drawing.

Compare the complete footprint

JST's PH catalog provides separate PCB layouts for through-hole and SMT versions, including top-entry and side-entry arrangements. The drawings identify their viewing direction and the position of circuit 1. They are useful evidence that changing attachment style requires a footprint review, even within a named series. JST PH catalog, pages 1–2

Review the board stack-up and usable component space with the PCB designer. A surface-mounted connector does not automatically leave the whole opposite side available; a through-hole connector does not automatically require the same keep-out as another through-hole variant. Use the actual outline and mounting features.

Agree the assembly route before releasing the board

For a mixed-technology board, ask the assembler how this header enters the production sequence. Depending on the selected part and process, through-hole soldering may involve wave, selective or manual operations. Do not assume that a through-hole housing can pass through the SMT reflow profile. JST specifically cautions that most of its through-hole header wafer materials cannot withstand the temperatures required for pin-in-paste reflow. JST soldering FAQ

Likewise, selecting an SMT header does not finish the process definition. JST's handling guidance calls for reflow evaluation because solder quality depends on the temperature profile, paste and reflow atmosphere. Apply the selected product's instructions and the assembler's qualified process rather than copying a temperature recipe from another connector. JST handling precautions, page 5

At the purchasing stage, distinguish a suitable component from a production-ready supply format. Confirm whether the selected ordering code has the packaging and pick-up arrangement required by the intended placement equipment. A sample that can be hand-positioned on a prototype is not, by itself, evidence that the same delivery format suits automated production.

Trace the mating load into the board

“Through-hole is stronger” and “SMT is too fragile” are poor selection rules. The useful question is how the actual connector and PCB carry mating, withdrawal and cable loads. Consider the housing geometry, mounting features, solder joints, board support and direction of force together.

For a concrete SMT example, Molex's PicoBlade application specification requires soldering the terminal sections and fitting nails and warns against unapproved changes to its recommended board pattern. Omitting a nail pad to save layout space changes the intended mounting arrangement. That instruction applies to the specified PicoBlade construction, not automatically to every SMT header. Molex PicoBlade application specification, page 5

Before choosing either style, walk through the real assembly motion. Where does the operator press? Is the board supported nearby? Can the plug be gripped during removal? Does the cable route place a constant sideways load on the header? These questions often reveal a layout problem that cannot be resolved merely by changing solder-tail style. The strain-relief guide addresses cable support separately.

Treat a header change as an interface change review

If the board already exists, use its installed header reference and footprint as the starting point. If the board can change, compare the complete alternatives before releasing copper and enclosure dimensions. Preserve the manufacturer-approved mating combination and explicitly verify circuit 1 and circuit mapping.

An alternative header needs its own drawing, materials and assembly limits. Similar body shape, pitch or a successful hand-mating trial does not establish PCB compatibility or transfer the original manufacturer's ratings and approvals.

For custom discrete-wire cable assemblies, identify the intended header, mating housing and board-assembly owner so the cable and PCB interfaces can be reviewed together. The PH-compatible connector page provides a sourcing starting point; it does not identify a universally interchangeable header.

Zeakka is a trading and sourcing partner. PCB assembly or SMT soldering services are not implied by a cable-assembly request and require separate confirmation. Original branded components are considered within finished assemblies, rather than offered here as loose components. Proposed compatible alternatives require validation for their own configuration.

Common questions

Can I change to SMT without changing the cable?

Possibly, if the exact SMT header is an approved mate for the existing housing and contacts and the circuit mapping remains correct. Confirm that combination before treating the change as board-only work.

Does an SMT header avoid PCB holes entirely?

Not necessarily. Some headers have locating or retention features that need holes even though the electrical tails use surface pads. Check the complete recommended footprint.

Is one attachment style always cheaper?

No. Compare the part, PCB layout and actual assembly sequence. An extra process step, packaging requirement or support feature can change the result; the header's unit price alone does not settle it.
