High-Quality Custom Molex Cable Assemblies
Tailored to your exact specifications. Fast turnaround, low MOQ, and 100% tested for reliability in industrial, medical, and consumer electronics.
Our Custom Capabilities
Why choose Zeakka for your Molex cable assembly needs
Genuine Molex Components
100% original authentic Molex connectors ensuring superior quality and reliability. We guarantee genuine parts or transparent equivalent alternatives.
Flexible Options
Support for various wire gauges (AWG), lengths, colors, shielding, and jacket materials (PVC, Teflon, Silicone, etc.) tailored to your exact needs.
Value-Added Services
Heat shrink tubing, label printing, cable ties, tinning, and custom packaging to streamline your assembly process.
Manufacturer Quality Standards
Partner manufacturers maintain ISO 9001 certifications and use UL-rated wire materials. We coordinate pre-shipment reviews and ensure manufacturers provide test reports and documentation.
Common Molex Connector Series
Comprehensive reference guide for 15+ Molex connector types
| Series | Zeakka Alt. | Pitch | Category | Pin Rows | Circuit No. | Current | Voltage | Wire (AWG) | Shroud | Lock |
|---|---|---|---|---|---|---|---|---|---|---|
| Pico-EZmate | 1202 | 1.20 mm (0.047 in) | wire to board | single | 2 to 6 | 3 A | 50 V | #30 to #28 | Yes | Yes |
| PicoBlade | 1251 | 1.25 mm (0.049 in) | wire to wire / wire to board | single | 2 to 15 | 2.5 A | 125 V | #32 to #26 | Yes | No |
| Picoflex | 2550 | 1.27mm (0.05 in) | wire to board | dual | 4 to 26 | 1.2 A | 250 V | #28 to #26 | No | No |
| Pico-SPOX | 1503 | 1.50 mm (0.059 in) | wire to board | single | 2 to 15 | 2.5 A | 250 V | #30 to #24 | Yes | No |
| MicroBlade | 2003 | 2.0 mm (0.079 in) | wire to board | single | 2 to 15 | 2 A | 125 V | #30 to #24 | Yes | Yes |
| Sherlock | 2004 | 2.0 mm (0.079 in) | wire to board | single | 2 to 15 | 2 A | 125 V | #30 to #24 | Yes | Yes |
| Duraclik | 2009 | 2.0 mm (0.079 in) | wire to board | single | 2 to 15 | 3 A | 125 V | #30 to #22 | Yes | Yes |
| Mini-SPOX | 2502 | 2.0 mm (0.079 in) | wire to board | single | 2 to 15 | 4 A | 250 V | #28 to #22 | Yes | Yes |
| SL Modular | 2544 | 2.54 mm (0.100 in) | wire to wire / wire to board | single | 2 to 41 | 3 A | 250 V | #36 to #22 | Yes | Yes |
| C-Grid III | 2545 | 2.54 mm (0.100 in) | wire to board | dual | 2 to 42 | 3 A | 250 V | #28 to #22 | Yes | Yes |
| KK 254 | / | 2.50 mm (0.098 in) | wire to board | single | 2 to 43 | 4 A | 250 V | #30 to #24 | Yes/No | Yes |
| Micro-Fit | 3001 | 3.0 mm (0.118 in) | wire to wire / wire to board | single & dual | 2 to 44 | 8.5 A | 600 V | #30 to #18 | Yes | Yes |
| Spox 396 | 3960 | 3.96 mm (0.156 in) | wire to board | single | 2 to 46 | 7 A | 250 V | #24 to #18 | Yes | Yes |
| Mini Fit | 4201 | 4.20 mm (0.165 in) | wire to wire / wire to board | single & dual | 2 to 48 | 9 A | 600 V | #28 to #16 | Yes | Yes |
| Mega-Fit | 5701 | 5.7 mm (0.2244in) | wire to wire / wire to board | single & dual | 2 to 12 | 30 A | 600 V | #16 to #12 | Yes | Yes |
Completed Projects
Showcase of custom Molex cable assemblies we've delivered
Molex Mini Fit Cable
Micro-Fit Overmolded Cable

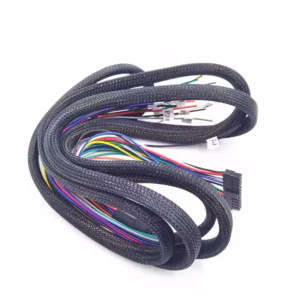

Braided Cable with Molex Connector
Molex PicoBlade Cable
Applications
Industries and use cases for custom Molex cable assemblies
Industrial Automation & Robotics
Smart Home & Security Systems
Test & Measurement Instruments
Commercial Lighting & LED Displays
E-Bikes & Light EVs
Commercial Self-Service Equipment
Pro AV & Gaming Equipment
Light Renewable Energy
How It Works
Simple 4-step process for custom Molex cable assemblies
Submit Specs
Upload your CAD drawings, BOM, or describe your requirements in detail.
Fast Quoting
Receive a detailed quote within 24 hours with transparent pricing and lead times.
Prototyping
Quick samples ready in 5-7 business days for your inspection and validation.
Mass Production
Scalable production with on-time delivery and full traceability documentation.
Frequently Asked Questions
Common questions about custom Molex cable assemblies
We're flexible with MOQ. For prototypes and samples, we can work with 100 pieces. For production orders, typical MOQ is 500-1000 pieces depending on complexity. Contact our sales team—we'll work with your volume.
Ready to Get Your Custom Molex Cable Assembly?
Send us your engineering drawings or BOM today. Our team will review your specifications and provide a comprehensive quote along with actionable Design for Manufacturing (DFM) feedback.
