High-Quality Custom JST Cable Assemblies
Tailored to your exact specifications. Fast turnaround, low MOQ, and 100% tested for reliability in industrial, medical, and consumer electronics.
Our Custom Capabilities
Why choose Zeakka for your JST cable assembly needs
Genuine Components
100% original authentic JST connectors ensuring superior quality and reliability. We guarantee genuine parts or transparent equivalent alternatives.
Flexible Options
Support for various wire gauges (AWG), lengths, colors, shielding, and jacket materials (PVC, Teflon, Silicone, etc.) tailored to your exact needs.
Value-Added Services
Heat shrink tubing, label printing, cable ties, tinning, and custom packaging to streamline your assembly process.
Manufacturer Quality Standards
Partner manufacturers maintain ISO 9001 certifications and use UL-rated wire materials. We coordinate pre-shipment reviews and ensure manufacturers provide test reports and documentation.
Common JST Connector Series
Comprehensive reference guide for 20+ JST connector types
| Series | Zeakka Alt. | Pitch | Category | Pin Rows | Circuit No. | Current (A) | Voltage (V) | Wire (AWG) | Shroud | Lock |
|---|---|---|---|---|---|---|---|---|---|---|
| SUR | 0801 | 0.8 mm (0.031 in) | wire to board | single | 2 to 22 | 0.5 | 30 | #32 | Yes | Yes |
| SH | 1002 | 1.0 mm (0.039 in) | wire to wire | single | 2 to 20 | 1 | 50 | #32 to #28 | Yes | No |
| ACH | 1201 | 1.20 mm (0.047 in) | wire to wire / wire to board | single | 1 to 5 | 2 | 50 | #32 to #28 | Yes | Yes |
| GH | 1253 | 1.25 mm (0.049 in) | wire to board | single | 2 to 15 | 1 | 50 | #30 to #26 | Yes | No |
| GHD | 1258 | 1.25 mm (0.049 in) | wire to board | dual | 10 to 40 | 1.25 | 50 | #32 to #26 | Yes | Yes |
| ZH | 1501 | 1.50 mm (0.059 in) | wire to board | single | 2 to 13 | 1 | 50 | #32 to #26 | Yes | No |
| ZPD | 1506 | 1.50 mm (0.059 in) | wire to board | dual | 10 to 40 | 2 | 100 | #28 to #24 | Yes | Yes |
| PH | 2002 | 2.0 mm (0.079 in) | wire to board | single | 2 to 16 | 2 | 100 | #32 to #24 | Yes | No |
| PHD | 2007 | 2.0 mm (0.079 in) | wire to board | dual | 8 to 34 | 3 | 250 | #28 to #22 | Yes | Yes |
| PA | 2001 | 2.0 mm (0.079 in) | wire to board | single | 2 to 16 | 3 | 250 | #28 to #22 | Yes | Yes |
| PUD | 2018 | 2.0 mm (0.079 in) | wire to board | dual | 8 to 40 | 3 | 250 | #28 to #22 | Yes | Yes |
| JWPF | 2014 | 2.0 mm (0.079 in) | wire to wire / wire to board | single & dual | 2 to 8 | 3 | 100 | #26 to #22 | Yes | Yes |
| XH | 2501 | 2.50 mm (0.098 in) | wire to board | single | 2 to 20 | 3 | 250 | #30 to #22 | Yes | Yes |
| NH | 2504 | 2.50 mm (0.098 in) | wire to board | single | 2 to 25 | 3 | 250 | #30 to #22 | No | Yes |
| EH | 2503 | 2.50 mm (0.098 in) | wire to board | single | 2 to 15 | 3 | 250 | #32 to #22 | Yes | Yes |
| XA | 2508 | 2.50 mm (0.098 in) | wire to wire / wire to board | single | 2 to 38 | 3 | 250 | #28 to #20 | Yes | Yes |
| SM | 2505 | 2.50 mm (0.098 in) | wire to wire | single | 2 to 39 | 3 | 250 | #28 to #22 | / | Yes |
| RCY | 2509 | 2.50 mm (0.098 in) | wire to wire | single | 2 to 40 | 3 | 250 | #28 to #22 | / | Yes |
| VH | 3961 | 3.96 mm (0.156 in) | wire to board | single | 2 to 10 | 10 | 250 | #22 to #16 | Yes/No | Yes |
| LEB | 4001 | 4.0 mm (0.157 in) | wire to board / board to board | single | 2 to 47 | 3 | 300 | #26 to #22 | Yes | Yes |
| NV | 5001 | 5.0 mm (0.197 in) | wire to board | single | 2 to 49 | 10 | 250 | #22 to #16 | No | Yes |
Applications
Industries and use cases for custom JST cable assemblies
Industrial Automation & Robotics
Smart Home & Security Systems
Test & Measurement Instruments
Commercial Lighting & LED Displays
E-Bikes & Light EVs
Commercial Self-Service Equipment
Pro AV & Gaming Equipment
Light Renewable Energy
How It Works
Simple 4-step process for custom JST cable assemblies
Submit Specs
Upload your CAD drawings, BOM, or describe your requirements in detail.
Fast Quoting
Receive a detailed quote within 24 hours with transparent pricing and lead times.
Prototyping
Quick samples ready in 5-7 business days for your inspection and validation.
Mass Production
Scalable production with on-time delivery and full traceability documentation.
Completed Projects
Showcase of custom JST cable assemblies we've delivered
JST XH with UL2464 cable

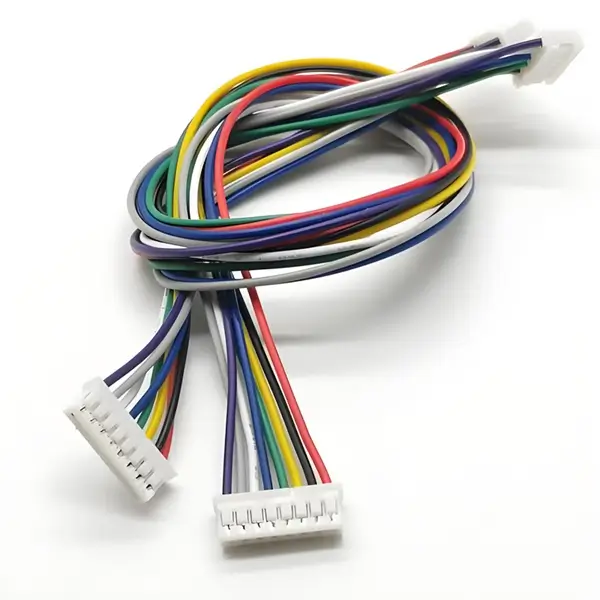

JST PH with UL1007 wire
JST SH with UL1007 wire
JST ZH Cable Assembly
JST ACH Cable Assembly
JST GH Cable Assembly
JST SUR Cable Assembly
JST ZPD Cable Assembly
JST GHD Cable Assembly
JST VH Cable Assembly

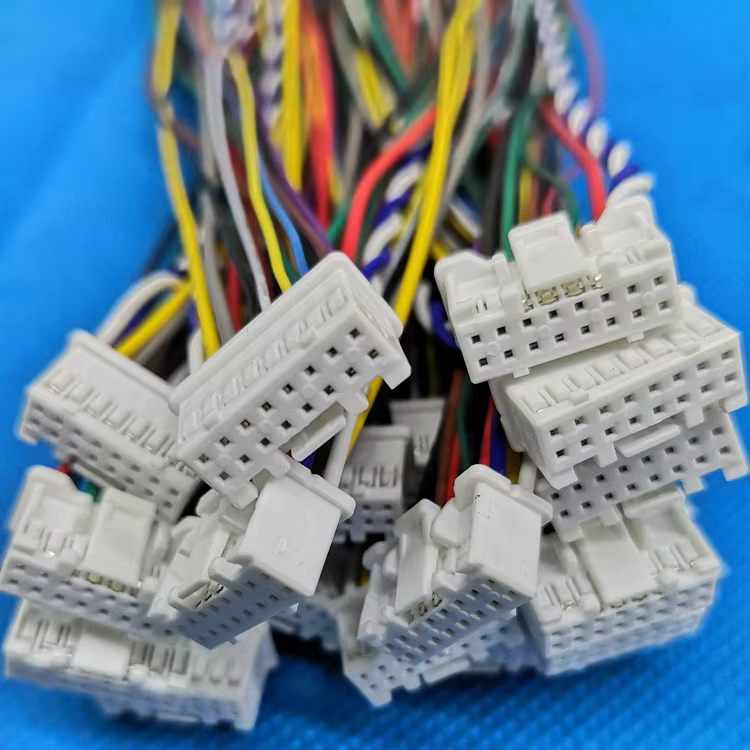

JST PUD Cable Assembly

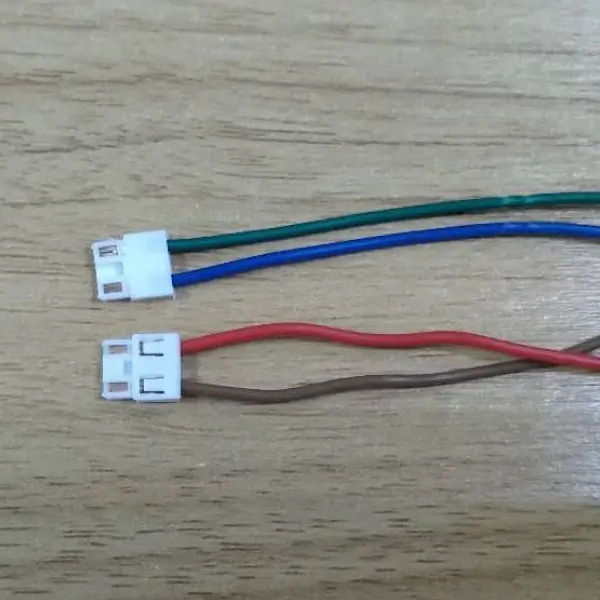

JST LEB Cable Assembly
Frequently Asked Questions
Common questions about custom JST cable assemblies
We're flexible with MOQ. For prototypes and samples, we can work with 100 pieces. For production orders, typical MOQ is 500-1000 pieces depending on complexity. Contact our sales team—we'll work with your volume.
Ready to Get Your Custom JST Cable Assembly?
Send us your engineering drawings or BOM today. Our team will review your specifications and provide a comprehensive quote along with actionable Design for Manufacturing (DFM) feedback.
