Unbranded Molex-Compatible Connector Alternatives for Specification Review
Zeakka is a trading and sourcing partner, not a factory. These are unbranded connector candidates referenced to Molex series—not original or authorized Molex products.
JST & Molex alternatives guide
Use a Molex reference for review, not as an assumed substitute
A series or part reference helps identify a candidate. It does not transfer the original brand's ratings, materials, certificates or device-level performance to an unbranded candidate. The quoted candidate and its current documents must be reviewed for the project.
What to send for a candidate check
- Current series or part reference
- Mating part, housing, header or terminal reference
- Drawing, pinout, sample or clear photos
- Pitch, circuit count, keying and latch details
- Wire/application details where relevant
- Quantity, target country and project requirements
Review path before production
- 01Identify the reference and project requirements
- 02Compare current candidate drawings and clarify differences
- 03Coordinate a candidate quotation
- 04Review a sample where the project requires it
- 05Customer approves the candidate in the actual application
Browse candidate/reference data
Filters and product cards help narrow recorded candidate/reference data. They are not proof of interchangeability, ratings, certificates or supply. Confirm the quoted candidate with its current drawing, sample and project approval.
Need a finished cable assembly?
This page is for loose unbranded connector candidates. For a finished cable assembly, Zeakka can source original Molex connectors for the project or review unbranded alternatives. Send the pinout, connector references and quantity through the custom cable-assembly page. Original connectors are not sold separately.
Custom Molex cable assembliesFilter by:
Showing 20 connectors
Molex 1.25mm CLIK-Mate Alternative (Pitch: 1.25mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Mounting Type: SMT
Max Current: 1A AC/DC
Applicable Wires (AWG): 28-26
Molex 1.5mm CLIK-Mate Alternative (Pitch: 1.5mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Mounting Type: SMT
Max Current: 2A AC/DC
Applicable Wires (AWG): 28-24
Molex 3.96mm 5.08mm Spox Alternative (Pitch: 3.96mm, 5.08mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Row Config Single Row
Mounting Type: THT
Max Current: 7A AC/DC
Applicable Wires (AWG): 24-18
Molex 51005 51006 Alternative (Pitch: 2.0mm)
Configuration Wire to Wire
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Row Config Single Row
Max Current: 2A AC/DC
Applicable Wires (AWG): 28-24
Molex C-Grid III Alternative (Pitch: 2.54mm)
Configuration Wire to Board
Pin Options 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64
Row Config Dual Row
Mounting Type: THT
Max Current: 3A AC/DC
Applicable Wires (AWG): 26-22
Molex DuraClik Alternative (Pitch: 2.0mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Mounting Type: SMT
Max Current: 3A AC/DC
Applicable Wires (AWG): 30-24
Molex Mega-Fit Alternative (Pitch: 5.7mm)
Configuration Wire to Board
Pin Options 2,4,6,8,10,12
Row Config Dual Row
Mounting Type: THT
Max Current: 23A AC/DC
Applicable Wires (AWG): 16-12
Molex Mi II Alternative (Pitch: 2.0mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Mounting Type: THT
Max Current: 3A AC/DC
Applicable Wires (AWG): 28-26
Molex Micro-Fit Alternative (Pitch: 3.0mm)
Configuration Wire to Board, Wire to Wire
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14,16,18,20,22,24
Row Config Single Row, Dual Row
Max Current: 5A AC/DC
Applicable Wires (AWG): 24-18
Molex MicroBlade Alternative (Pitch: 2.0mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Mounting Type: THT
Max Current: 2A AC/DC
Applicable Wires (AWG): 30-24
Molex Mini-Fit Alternative (Pitch: 4.2mm)
Configuration Wire to Board, Wire to Wire
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14,16,18,20,22,24
Row Config Single Row, Dual Row
Max Current: 9A AC/DC
Applicable Wires (AWG): 24-18
Molex Mini-SPOX Alternative (Pitch: 2.5mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15,16
Row Config Single Row
Mounting Type: THT
Max Current: 3A AC/DC
Applicable Wires (AWG): 28-22
Molex PanelMate Alternative (Pitch: 1.25mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 18, 20
Row Config Single Row
Mounting Type: SMT
Max Current: 1A AC/DC
Applicable Wires (AWG): 32-28
Molex Pico Lock Alternative (Pitch: 1.5mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Row Config Single Row
Mounting Type: SMT
Max Current: 3A AC/DC
Applicable Wires (AWG): 30-28
Molex Pico-EZmate Alternative (Pitch: 1.2mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7
Row Config Single Row
Mounting Type: SMT
Max Current: 1A AC/DC
Applicable Wires (AWG): 36-30

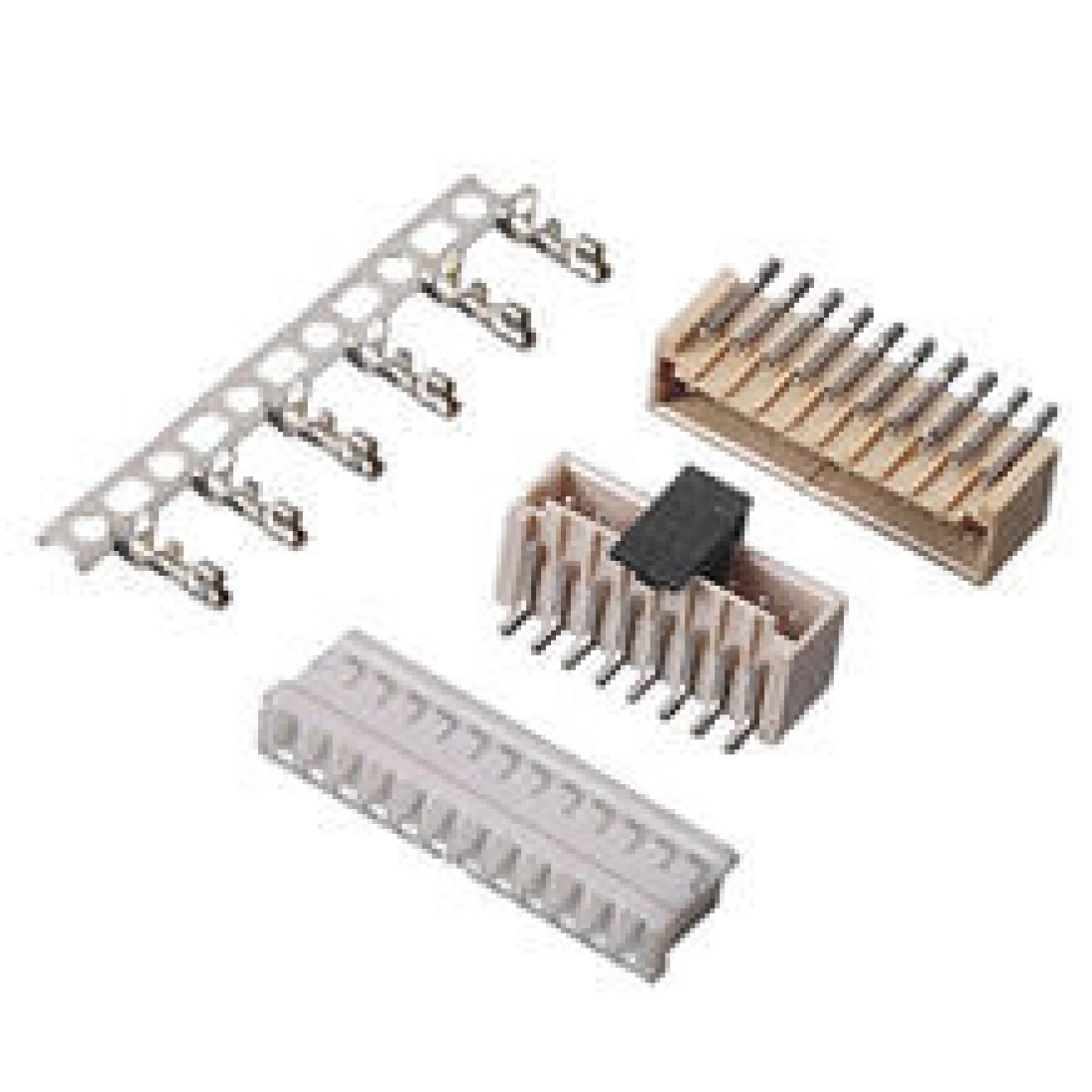

Molex Pico-Spox Alternative (Pitch: 1.5mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Mounting Type: SMT
Max Current: 3A AC/DC
Applicable Wires (AWG): 28-24
Molex PicoBlade Alternative (Pitch: 1.25mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Mounting Type: SMT, THT
Max Current: 1A AC/DC
Applicable Wires (AWG): 32-28
Molex Picoflex Alternative (Pitch: 2.54mm)
Configuration Wire to Board, Board-in
Pin Options 4,6,8,10, 12, 14, 16, 18, 20, 22, 24, 26
Row Config Single Row, Dual Row
Mounting Type: SMT, THT
Max Current: 1.2A AC/DC
Applicable Wires (AWG): 28-26
Molex Sherlock Alternative (Pitch: 2.0mm)
Configuration Wire to Board
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Mounting Type: THT
Max Current: 2A AC/DC
Applicable Wires (AWG): 30-24
Molex SL Modular Alternative (Pitch: 2.54mm)
Configuration Wire to Board, Wire to Wire
Pin Options 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Row Config Single Row
Max Current: 3A AC/DC
Applicable Wires (AWG): 26-22
Frequently asked questions
Start with a reference that can be checked
Send the Molex part or series reference with mating details, a drawing, sample or photos, quantity and application. Zeakka will coordinate candidate information and a project-specific quotation; final approval remains with the customer.
